Coaxial

7.62 mm Gun
Panoramic Day & Night Weapon Sight

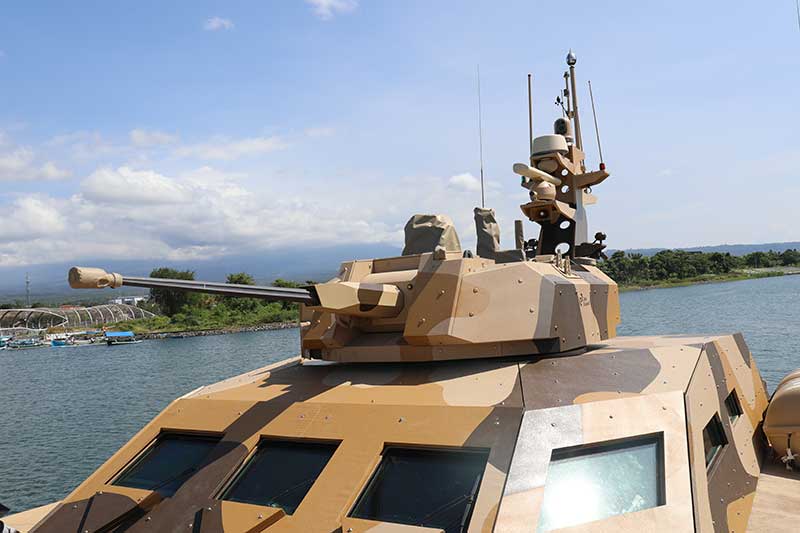

Turret Cockerill C3030
Beach Landing Ramp
Troop Hatches
Liferaft
12.7 mm mounted M.G

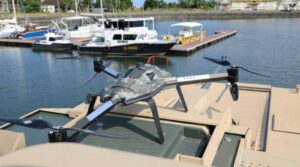

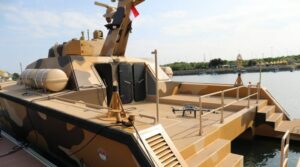

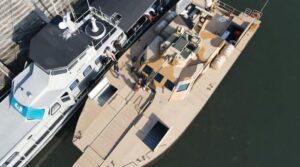

AFT-DECK for Logistic (5 tons)
HD Open Array radar
Doppler Radar with CHIRP Pulse Compression

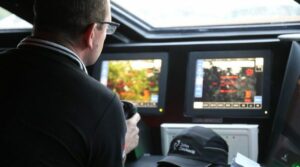

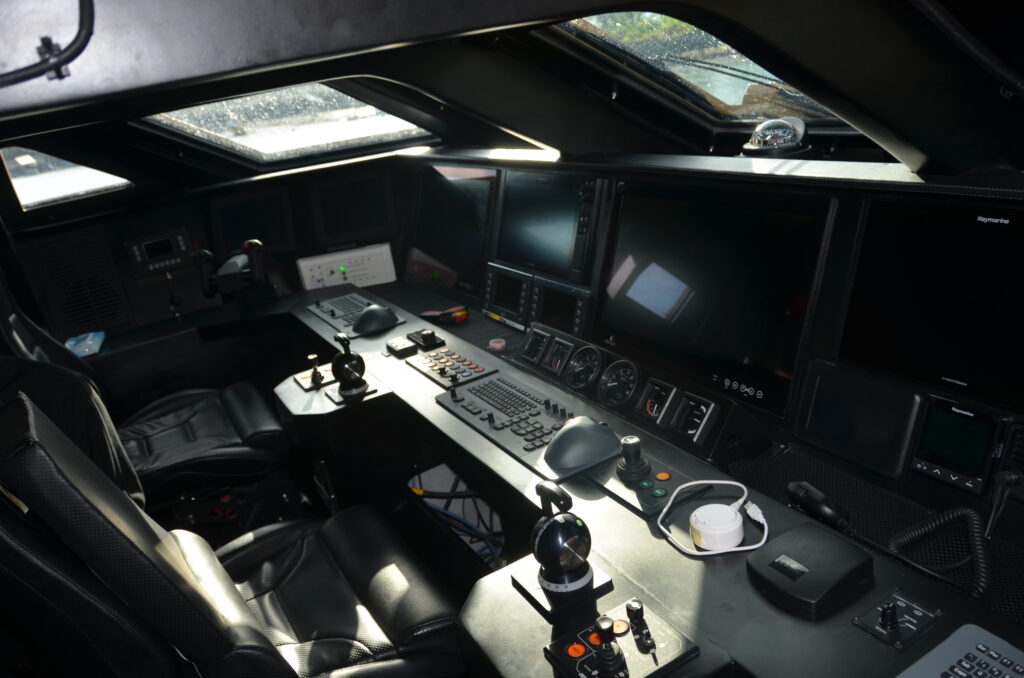

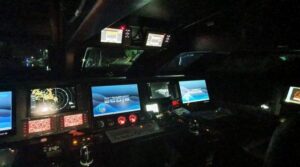

Navigation Day & Night System
2 Waterjets

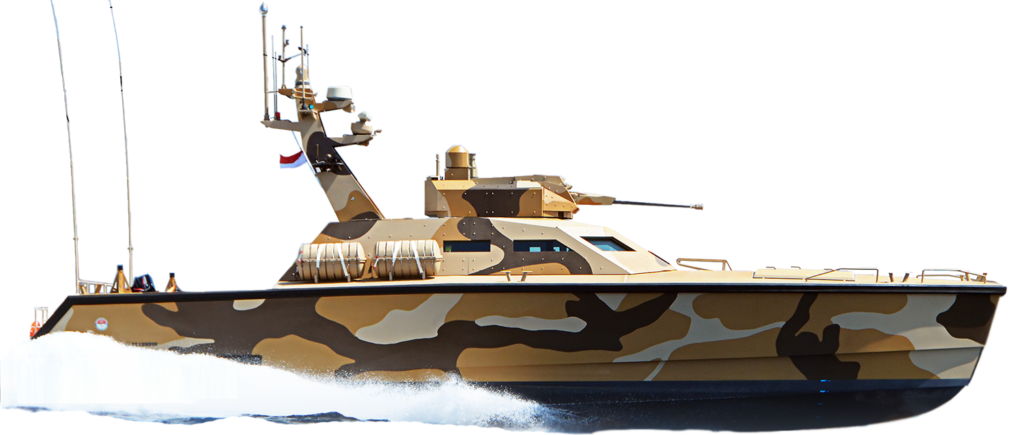

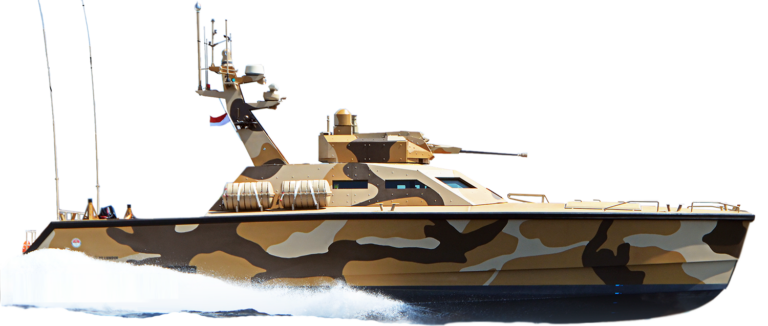

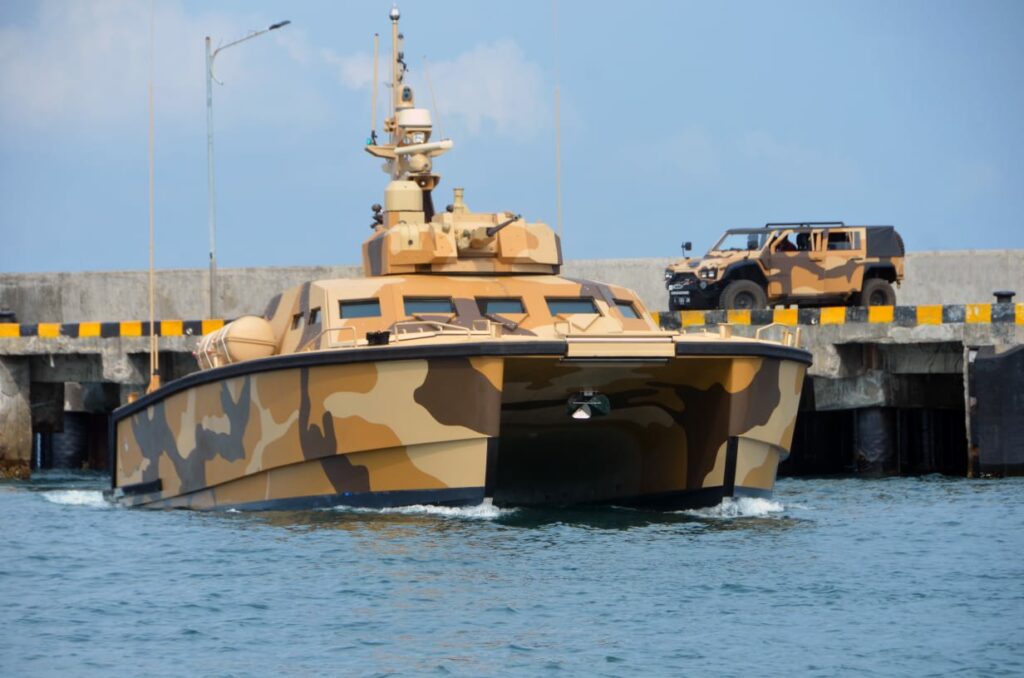

TANK BOAT X18

Material

Foil assisted catamaran with full carbon fibre

Weapon System

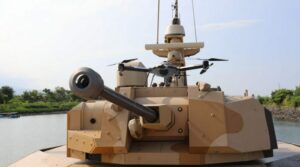

30 mm Cockerill C3030

2 MG X 12.77 mm manually operated on aft deck

Propulsion System

2 x 1700HP Diesel Engine

2 x MJP450 Waterjet

TANK BOAT X18 CONTRIBUTION

The contribution of Tank Boat X18 is to overall battlespace capability provides tactical commanders with a new concept of a truly multi-purpose maritime craft system.

TANK BOAT

Tank Boat X18 is the product of 10 years of investment and development between Europe and Indonesia with the cutting-edge of international technology, combines surveillance, protection, and assistance at a reasonable cost.

Length

18.75 m

Beam

7.50 m

Draught

0.90 m

Displacement

43 tons


We present the cutting-edge of international technology

The Revolution in Maritime Force Projection

Tank Boat Gives Operators a versatility that has only been dreamt of before

A new concept from the international leader in gun and boat design

TANK BOAT X18 ARMOURED TROOP CARRIER

The Tank Boat X18 represent a highly effective, versatile and effective that is a necessary addition to the existing surface fleet.

CAPACITY

5 Crews
20 – 60 Troops

PERFORMANCE

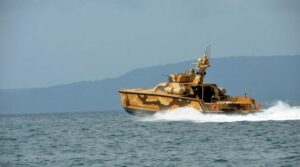

Max Speed at mid-load 50 knots

MISSION RANGE

Up to 600 nautical miles @ 50 knots

OTHER FEATURES

Low op costs, latest navionic tech, interface with drones & border surveillance capabilities

ROLES

INTRODUCTION

The geopolitical environment and the future naval/air/sea battlefield present demanding challenges for structure, equipment and tactical employment. Conventional warfighting in support of national territorial defence will remain the benchmark against which armed forces must train and prepare, involving the commitment of combined arms in a battlespace where the capability to rapidly manoeuvre and concentrate fire will be at a premium. However, it is operations other than conventional war that are likely to remain a more common form of commitment, ranging from border skirmishes to counter-insurgency to participation in UN or coalition peacekeeping operations.
